Four Flute Long Reach Solid Carbide End Mills Flat Endmill With High Performance

Product Details:

Place of Origin:	China
Brand Name:	INMIND
Certification:	SGS Factory Certificater
Model Number:	45°Helix Angle,Standard Length type 1mm to 20mm

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs per specification wthin 12mm
Price:	Negotiable
Packaging Details:	1 piece packing
Delivery Time:	For Samples: 3-5 days For Batch:10 to 15 days.
Payment Terms:	T/T 100% Advinced,Paypal,Western Union
Supply Ability:	50000pcs/month

Contact Now

Detailed Product Description

Features:	Long Reach\|High Speed\|Flat End Mill	Application:	Milling
Coating:	Tialn Coated	Flute NO.:	Four Flute
HRC:	HRC55	Material:	Solid Carbide\|Carbide
Processing Mode:	CNC	Product Name:	Solid Carbide End Mills\|Square End Mill
Highlight:	carbide tapered end mills

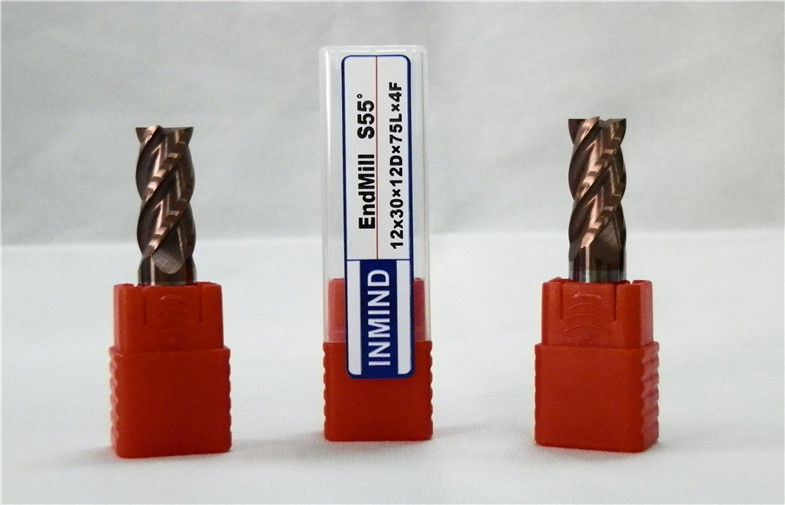

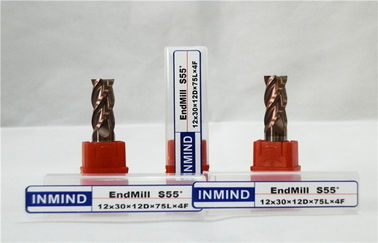

Four Flute Long Reach Solid Carbide End Mills Flat Endmill With High Performance

Quick Detail:

0.5-0.6um Ultra-Fine grain size solid carbide rod

TIALN Coating (Black),TiSiAlN(Copper)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC55

1 piece packing.

Long Flute Type

Description:

Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.

Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um

Applications:

Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.

Specifications:

Order No	Cutting	Flute Length	Shank	A.O.L
Order No	d	l	D	L
3×15×3D×75L×4F	3	15	3	75
4×20×4D×75L×4F	4	20	4	75
5×25×5D×75L×4F	5	25	5	75
5×25×6D×75L×4F	5	25	6	75
6×25×6D×75L×4F	6	25	6	75
8×30×8D×75L×4F	8	30	8	75
3×15×3D×100L×4F	3	15	3	100
4×20×4D×100L×4F	4	20	4	100
5×25×5D×100L×4F	5	25	5	100
6×30×6D×100L×4F	6	30	6	100
8×35×8D×100L×4F	8	35	8	100
10×45×10D×100L×4F	10	45	10	100
12×50×12D×100L×4F	12	50	12	100
6×35×6D×150L×4F	6	35	6	150
8×40×8D×150L×4F	8	40	8	150
10×50×10D×150L×4F	10	50	10	150
12×55×12D×150L×4F	12	55	12	150
14×60×14D×150L×4F	14	60	14	150
16×65×16D×150L×4F	16	65	16	150
18×70×18D×150L×4F	18	70	18	150
20×75×20D×150L×4F	20	75	20	150

Competitive Advantage:

Good and Stable Quality.

New Coating TiSiAlN Improve the performance in high hardness material and stainless steel.

Competitive price.

Help the agent to get the get more large market in the quality products.
