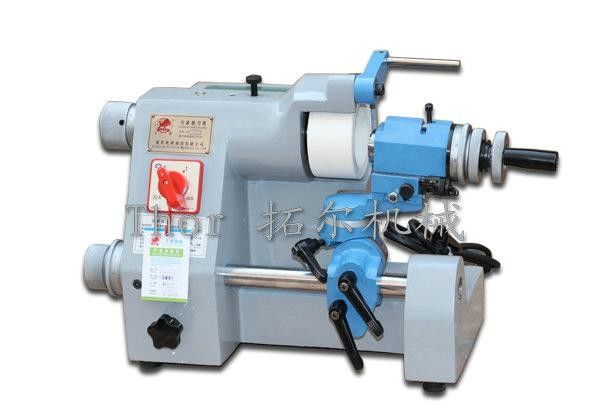

Universal cutter grinder G-430
Universal cutter grinder G-430 is applicable to grind milling cutter of all kinds of diameter, shapers and angles for die sinker, also to die pin corresponding to the miller according to die sinker scale, it has ability of grinding turning tool, drill. So it is an necessary equipment in using die sinker with excellent figuration, new structure and good application.
Name MM Inch
Grinding wheel Diameter ¦ µ 100mm 4¡ å
Thickness 50mm 2¡ å
Inner ¦ µ 20mm 3/ 4¡ å
Speed of spindle 5100r.p.m
Capacity ¦ µ 3¡ « ¦ µ 16mm 1/ 8¡ å ¡ « 5/ 8¡ å
Horizontal travel of work head 140mm
Longtitudinal travel of work head 18mm
Spindle and wheel gongltudinal adjustmend travel 6mm
Taper angle range 0¡ ã ¡ « 180¡ ã
Negative taper angle range 0¡ ã ¡ « 52¡ ã
Relief angle range 0¡ ã ¡ « 44¡ ã
Motor power 0.18KW
Voltage 380V
speed£ ¨ 50Hz) 2810r.p.m
speed£ ¨ 60Hz£ © 3400r.p.m
Frequency£ ¨ Hz£ © 50 or 60Hz
Machine size and Net weight 45¡ Á 35¡ Á 34cm/ 50kg 18¡ å ¡ Á 14¡ å ¡ Á 14¡ å
Package size and Gross weight 60¡ Á 40¡ Á 42cm/ 60kg 19¡ å ¡ Á 15¡ å ¡ Á 14 1/ 4¡ å
Stand accessory
Name number Mark
WA grinding wheel 1 80#
collet 5 4¡ ¢ 6¡ ¢ 8MM
Tool set 1 4¡ ¢ 6¡ ¢ 8mm
drive belt 1 22CM
diamond pen 1 ¦ µ 7 mm
