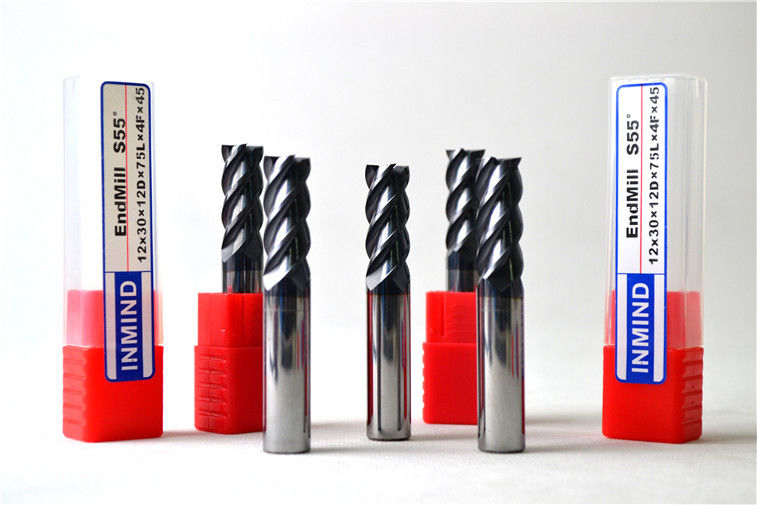

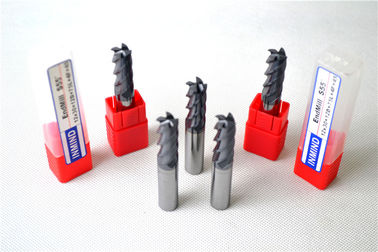

High Speed Steel Square End Mill Standard with 45°Helix Angle / Standard Length Type
Quick Detail:
0.5-0.6um Ultra-Fine grain size solid carbide rod
TIALN Coating (Black),TiSiAlN(Copper)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC55
45°Helix Angle
1 piece packing.
Standard Length Type
Semi-Finishing to Finshing Milling
Description:
Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting
long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency
of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.
Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um
1) PVD AITiN ALCrN,TiAIN coating
(2) High hardness,Thermal conductivity and long tool life
(3) Different combination of substrate material,geometry and coating
(4) To meet the requirement of different material machineing and univeral application
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,
enhanced composited material with fiberglass.
Specifications:
|
Order No
|
Cutting
|
Flute Length
|
Shank
|
A.O.L
|
|
d
|
l
|
D
|
L
|
|
1.0×3×4D×50L×4F
|
1
|
3
|
4
|
50
|
|
1.5×4×4D×50L×4F
|
1.5
|
4
|
4
|
50
|
|
2.0×6×4D×50L×4F
|
2
|
6
|
4
|
50
|
|
2.5×8×4D×50L×4F
|
2.5
|
8
|
4
|
50
|
|
3.0×8×4D×50L×4F
|
3
|
8
|
4
|
50
|
|
3.5×10×4D×50L×4F
|
3.5
|
10
|
4
|
50
|
|
4.0×11×4D×50L×4F
|
4
|
11
|
4
|
50
|
|
3.0× 8×6D×50L×4F
|
3
|
8
|
6
|
50
|
|
3.5×10×6D×50L×4F
|
3.5
|
10
|
6
|
50
|
|
4.0×11×6D×50L×4F
|
4
|
11
|
6
|
50
|
|
4.5×13×6D×50L×4F
|
4.5
|
13
|
6
|
50
|
|
5.0×13×6D×50L×4F
|
5
|
13
|
6
|
50
|
|
5.5×13×6D×50L×4F
|
5.5
|
13
|
6
|
50
|
|
6.0×15×6D×50L×4F
|
6
|
15
|
6
|
50
|
|
7.0×16×8D×60L×4F
|
7
|
16
|
8
|
60
|
|
8.0 ×20×8D×60L×4F
|
8
|
20
|
8
|
60
|
|
9 ×20×10D×75L×4F
|
9
|
20
|
10
|
75
|
|
10×20×10D×75L×4F
|
10
|
25
|
10
|
75
|
|
11×25×12D×75L×4F
|
11
|
25
|
12
|
75
|
|
12×30×12D×75L×4F
|
12
|
30
|
12
|
75
|
|
14×35×14D×100L×4F
|
14
|
35
|
14
|
100
|
|
16×40×16D×100L×4F
|
16
|
40
|
16
|
100
|
|
18×45×18D×100L×4F
|
18
|
40
|
18
|
100
|
|
20×45×20D×100L×4F
|
20
|
45
|
20
|
100
|
Competitive Advantage:
Good and Stable Quality.
New Coating TiSiAlN Improve the performance in high hardness material and stainless steel.
Competitive price.
Help the agent to get the get more large market in the quality products.
