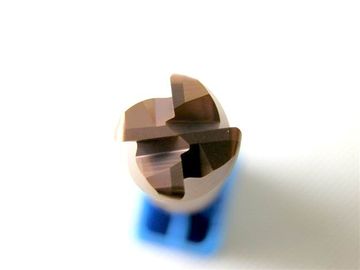

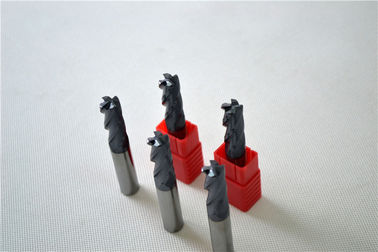

Coated Slotting Micro End Mills , Corner Radius End Mill Super-Fine Grain
Quick Detail:
0.3-0.4um Super-Fine grain size solid carbide rod,Germany

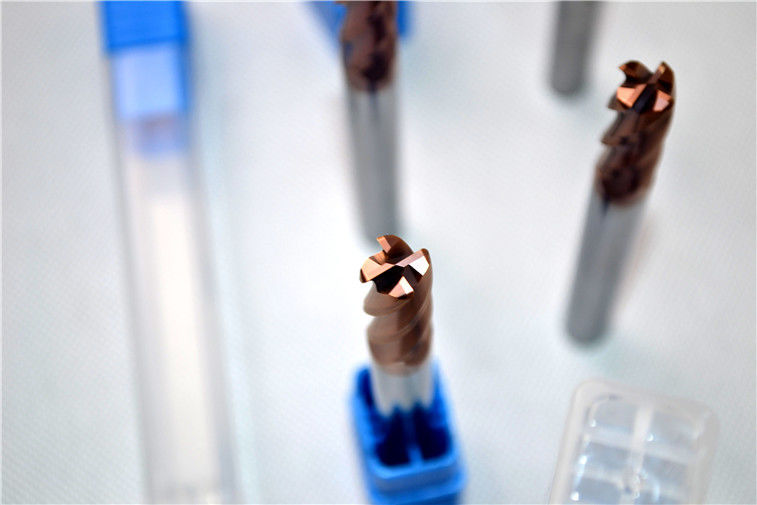

Mutli-TIALN Coating (Black)--Arco,TiSiAlN(Copper),Platit
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC60
1 piece packing.
Standard Length Type
Description:
Super-Fine Grain Szie 0.3-0.4um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC60,Middle-High speed.
Carbide Rod:Wc:90%,TRS:4000N/mm2, Grain Size:0.3-0.4um,HRA:93.5
Applications:
Fit for milling quenching and tempered steel.high wear resistance material,stainless steel.nickel alloy andY Titanium alloy,Cast iron,enhanced composited material like Keviar and graphite,reinforced Plastics,For PCB routers,for high speed cutting,for dry cutting.
Specifications:
|
Order No
|
Cutting Diameter
|
Flute length
|
Shank Diameter
|
R Corner
|
A.O.L
|
|
d
|
l
|
D
|
R
|
L
|
|
1×3×4D×R0.2×50L×2F
|
1
|
3
|
4
|
R0.2
|
50
|
|
1×3×4D×R0.3×50L×2F
|
1
|
3
|
4
|
R0.3
|
50
|
|
1.5×3×4D×R0.2×50L×2F
|
1.5
|
4
|
4
|
R0.2
|
50
|
|
1.5×3×4D×R0.3×50L×2F
|
1.5
|
4
|
4
|
R0.3
|
50
|
|
2×6×4D×R0.2×50L×4F
|
2
|
6
|
4
|
R0.2
|
50
|
|
2×6×4D×R0.3×50L×4F
|
2
|
6
|
4
|
R0.3
|
50
|
|
2×6×4D×R0.5×50L×4F
|
2
|
6
|
4
|
R0.5
|
50
|
|
2.5×8×4D×R0.2×50L×4F
|
2.5
|
6
|
4
|
R0.2
|
50
|
|
2.5×8×4D×R0.5×50L×4F
|
2.5
|
6
|
4
|
R0.5
|
50
|
|
3×8×3D×R0.3×50L×4F
|
3
|
8
|
3
|
R0.3
|
50
|
|
3×8×3D×R0.5×50L×4F
|
3
|
8
|
3
|
R0.5
|
50
|
|
3×8×4D×R0.3×50L×4F
|
3
|
8
|
4
|
R0.3
|
50
|
|
3×8×4D×R0.5×50L×4F
|
3
|
8
|
4
|
R0.5
|
50
|
|
4×10×4D×R0.5×50L×4F
|
4
|
10
|
4
|
R0.5
|
50
|
|
4×10×4D×R1.0×50L×4F
|
4
|
10
|
4
|
R1.0
|
50
|
|
4×10×6D×R0.5×50L×4F
|
4
|
10
|
6
|
R0.5
|
50
|
|
4×10×6D×R1.0×50L×4F
|
4
|
10
|
6
|
R1.0
|
50
|
|
5×13×6D×R0.5×50L×4F
|
5
|
13
|
6
|
R0.5
|
50
|
|
5×13×6D×R1.0×50L×4F
|
5
|
13
|
6
|
R1.0
|
50
|
|
6×15×6D×R0.5×50L×4F
|
6
|
15
|
6
|
R0.5
|
50
|
|
6×15×6D×R1.0×50L×4F
|
6
|
15
|
6
|
R1.0
|
50
|
|
8×20×8D×R0.5×60L×4F
|
8
|
20
|
8
|
R0.5
|
60
|
|
8×20×8D×R1.0×60L×4F
|
8
|
20
|
8
|
R1.0
|
60
|
|
8×20×8D×R1.5×60L×4F
|
8
|
20
|
8
|
R1.5
|
60
|
|
10×25×10D×R0.5×75L×4F
|
10
|
25
|
10
|
R0.5
|
75
|
|
10×25×10D×R1.0×75L×4F
|
10
|
25
|
10
|
R1.0
|
75
|
|
10×25×10D×R1.5×75L×4F
|
10
|
25
|
10
|
R1.5
|
75
|
|
10×25×10D×R2.0×75L×4F
|
10
|
25
|
10
|
R2.0
|
75
|
|
12×30×13D×R0.5×75L×4F
|
12
|
30
|
12
|
R0.5
|
75
|
|
12×30×13D×R1.0×75L×4F
|
12
|
30
|
12
|
R1.0
|
75
|
|
12×30×13D×R1.5×75L×4F
|
12
|
30
|
12
|
R1.5
|
75
|
|
12×30×13D×R2.0×75L×4F
|
12
|
30
|
12
|
R2.0
|
75
|
Competitive Advantage:
High Quality and Stable Quality.
New Coating TiSiAlN Improve the performance in high hardness material and stainless steel.
Competitive price
Help the agent to get the get more large market in the High quality products.
