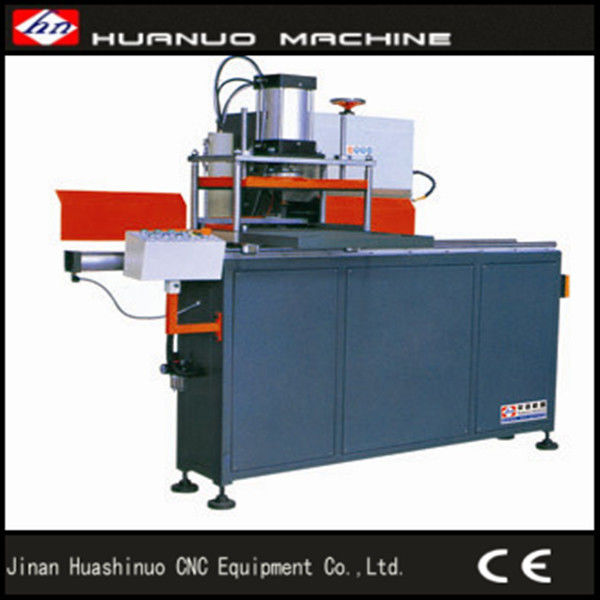

aluminum window end milling machine

Model

Main Feature

FOBQingdao

LXDB-250

1.Used for aluminum profile end processing and suitable for various profiles.

2.It can process several(6-10sets) profiles one time with high efficiency.

3.Don’t need to order tools when process various profiles.

4.Machine tools can adjust up and down,before and after according the profile.

5.Liner bearing guid rail, Four set knife and three motor.Five set knife with four motor

LXD02-200

1.Used for aluminum profile end processing.

2.It need order tools according the profile when process, one model one tool.

3.It only can process 1 set profile one time.

4.Machine tools can’t adjust.

LXDA-200

1.Used for aluminum profile end processing.

2.It need order tools according the profile when process, one model one tool.

3.It can processing 1-3 sets profile one time.

4.Machine tools can adjust.

Model

LXDB-250

LXD02-200

LXDA-200


Motor power

3*2.2kw /4*2.2kw

1.5kw

1.5kw

Motor rotating speed

2840r/min

2800r/min

2800r/min

Air consumption

150L /min

100L /min

100L /min

Oil circuit system pressure

0.6-0.8Mpa

0.4-0.6Mpa

0.4-0.6Mpa

Saw Blade Diameter

Φ250*32mm

Φ200*32mm

Φ200*32mm

Max open tenon

40mm

Cutter adjustment

85mm

Worktable Journey

0-1050mm

Open tenon(H*W)

70*45mm

70*45mm

Locating turning angle

35-90angle

Feeding journey of worktable

0-320mm

0-320mm

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

Overall dimension

2400*1250*1900(mm)

850*740*1280(mm)

850*740*1280mm

Weight

1000kgs

150kgs

150kgs
