Long Shank Carbide Micro End Mills for Stainless steel / Ball Nose End Mill

Product Details:

Place of Origin:	China
Brand Name:	INMIND
Certification:	SGS Factory Certificater
Model Number:	Long Shank type 1mm to 20mm

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs per specification wthin 12mm
Price:	Negotiable
Packaging Details:	1 piece packing
Delivery Time:	For Samples: 3-5 days For Batch:10 to 15 days.
Payment Terms:	T/T 100% Advinced,Paypal,Western Union
Supply Ability:	50000pcs/month

Contact Now

Detailed Product Description

Features:	Long Reach, High Speed	Application:	Roughing, Stainless Steel, Slotting, Milling
Coating:	Tialn Coated	HRC:	HRC60
Material:	Solid Carbide, Carbide	Processing Mode:	CNC
Product Name:	Micro End Mills	Type:	Long Shank
Highlight:	mini end mill

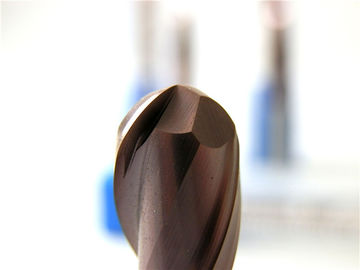

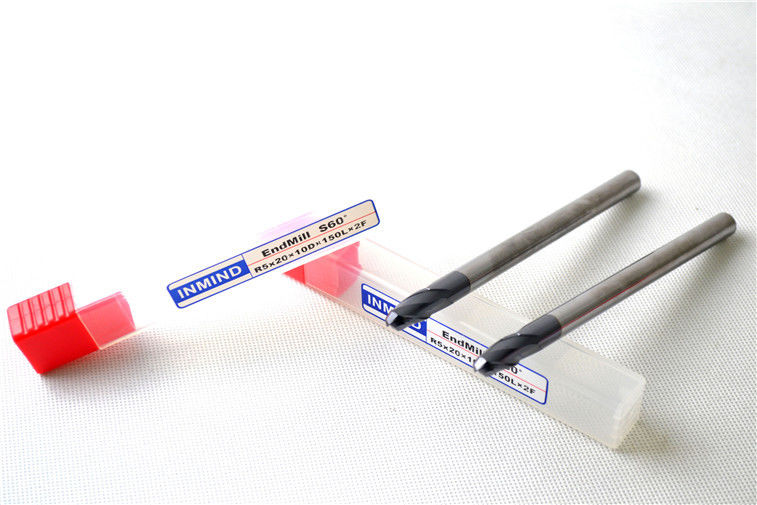

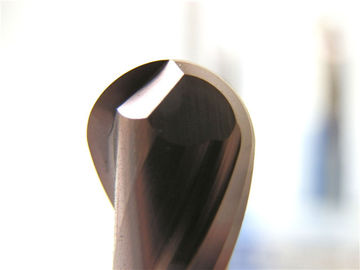

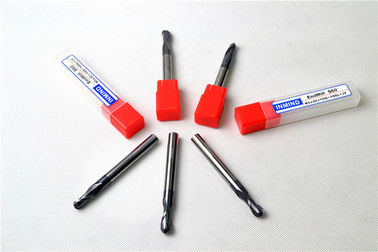

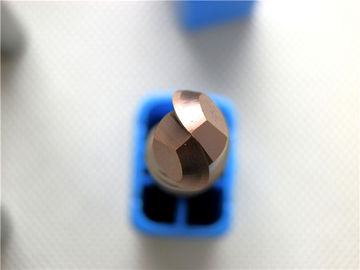

Long Shank Carbide Micro End Mills for Stainless steel / Ball Nose End Mill

Quick Detail:

0.3-0.4um Super-Fine grain size solid carbide rod,Germany

Mutli-TIALN Coating (Black)--Arco,TiSiAlN(Copper),Platit

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC60

1 piece packing.

Long Shank Type

Description:

Super-Fine Grain Szie 0.3-0.4um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC60,Middle-High speed.

Carbide Rod:Wc:90%,TRS:4000N/mm2, Grain Size:0.3-0.4um,HRA:93.5

Applications:

Fit for milling quenching and tempered steel.high wear resistance material,stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material like Keviar and graphite,reinforced Plastics,For PCB routers,for high speed cutting,for dry cutting.

Specifications:

Long Shank Carbide Micro End Mills for Stainless steel / Ball Nose End Mill 0

Order No	Cutting Diameter	Shank Diameter	Flute Length	A.O.L
Order No	d	l	D	L
R0.5×2×4D×75L×2F	1	4	2	75
R0.75×3×4D×75L×2F	1.5	4	3	75
R1.0×4×4D×75L×2F	2	4	4	75
R1.25×5×4D×75L×2F	2.5	4	5	75
R1.5×6×4D×75L×2F	3	4	6	75
R1.75×7×4D×75L×2F	3.5	4	7	75
R2.0×8×4D×75L×2F	4	4	8	75
R2.5×10×5D×75L×2F	5	5	10	75
R2.5×10×6D×75L×2F	5	6	10	75
R2.5×10×5D×100L×2F	5	5	10	100
R2.5×10×6D×100L×2F	5	6	10	100
R3.0×12×6D×75L×2F	6	6	12	75
R3.0×12×6D×100L×2F	6	6	12	100
R3.0×12×6D×150L×2F	6	6	12	150
R4.0×16×8D×75L×2F	8	8	16	75
R4.0×16×8D×100L×2F	8	8	16	100
R4.0×16×8D×150L×2F	8	8	16	150
R5.0×20×10D×100L×2F	10	10	20	100
R5.0×20×10D×150L×2F	10	10	20	150
R6.0×24×12D×100L×2F	12	12	24	100
R6.0×24×12D×150L×2F	12	12	24	150
R7.0×28×14D×150L×2F	14	14	28	150
R8.0×32×16D×150L×2F	16	16	32	150
R10×40×20D×150L×2F	20	20	40	150
