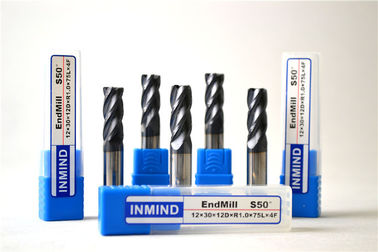

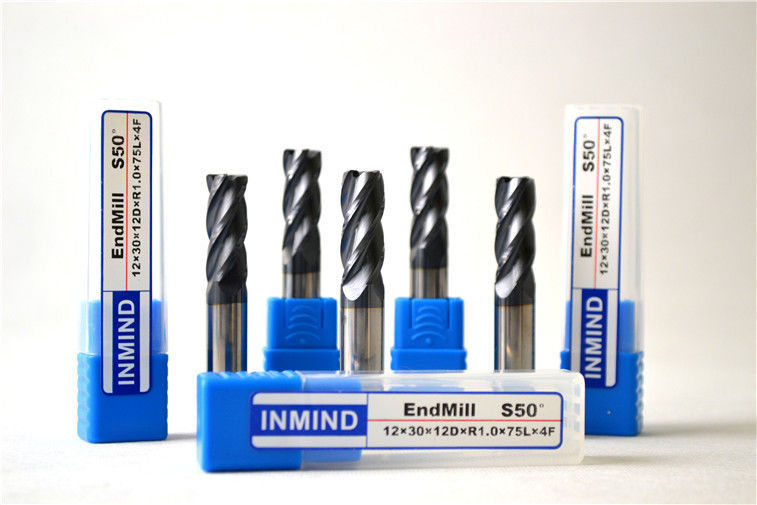

Custom Radius End Mills TIALN Coated Cutters For Aluminium , Ball Nose End Mills

Custom Radius End Mills TIALN Coated Cutters For Aluminium , Ball Nose End Mills

  • Custom Radius End Mills TIALN Coated Cutters For Aluminium , Ball Nose End Mills
Custom Radius End Mills TIALN Coated Cutters For Aluminium , Ball Nose End Mills
Product Details:
Place of Origin: China
Brand Name: INMIND
Certification: SGS Factory Certificater
Model Number: Corner Radius Standard Length Type 1mm to 20mm
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs per specification wthin 12mm
Price: Negotiable
Packaging Details: 1 piece packing
Delivery Time: For Samples: 3-5 days For Batch:10 to 15 days.
Payment Terms: T/T 100% Advinced,Paypal,Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Features: Micro|Middle Speed Application: Stainless Steel|Milling|Aluminium|Slotting
Coating: Tialn Coated HRC: HRC50
Material: Solid Carbide|Carbide Product Name: Corner Radius End Mill
Type: Standard Helix Angle: 30
Processing Mode: CNC
Highlight:

corner rounding end mill

Custom Radius End Mills TIALN Coated Cutters For Aluminium , Ball Nose End Mills





Quick Detail:



0.6-0.8um Mirco grain size solid carbide rod

TIALN Coating ,high Aluminium (Black),Middle Aluminium(Copper)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC50

1 piece packing.

Corner Radius Standard Type





Description:



Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool

life,

from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving

time

of making moulds.Suggest to process iron and steel upto HRC50,Middle-low speed.

Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um





Applications:



Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy.

Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.





Specifications:

Custom Radius End Mills TIALN Coated Cutters For Aluminium , Ball Nose End Mills 0



Order No

Cutting Diameter

Flute length

Shank Diameter

R Corner

A.O.L

d

l

D

R

L

1×3×4D×R0.2×50L×2F

1

3

4

R0.2

50

1×3×4D×R0.3×50L×2F

1

3

4

R0.3

50

1.5×3×4D×R0.2×50L×2F

1.5

4

4

R0.2

50

1.5×3×4D×R0.3×50L×2F

1.5

4

4

R0.3

50

2×6×4D×R0.2×50L×4F

2

6

4

R0.2

50

2×6×4D×R0.3×50L×4F

2

6

4

R0.3

50

2×6×4D×R0.5×50L×4F

2

6

4

R0.5

50

2.5×8×4D×R0.2×50L×4F

2.5

6

4

R0.2

50

2.5×8×4D×R0.5×50L×4F

2.5

6

4

R0.5

50

3×8×3D×R0.3×50L×4F

3

8

3

R0.3

50

3×8×3D×R0.5×50L×4F

3

8

3

R0.5

50

3×8×4D×R0.3×50L×4F

3

8

4

R0.3

50

3×8×4D×R0.5×50L×4F

3

8

4

R0.5

50

4×10×4D×R0.5×50L×4F

4

10

4

R0.5

50

4×10×4D×R1.0×50L×4F

4

10

4

R1.0

50

4×10×6D×R0.5×50L×4F

4

10

6

R0.5

50

4×10×6D×R1.0×50L×4F

4

10

6

R1.0

50

5×13×6D×R0.5×50L×4F

5

13

6

R0.5

50

5×13×6D×R1.0×50L×4F

5

13

6

R1.0

50

6×15×6D×R0.5×50L×4F

6

15

6

R0.5

50

6×15×6D×R1.0×50L×4F

6

15

6

R1.0

50

8×20×8D×R0.5×60L×4F

8

20

8

R0.5

60

8×20×8D×R1.0×60L×4F

8

20

8

R1.0

60

8×20×8D×R1.5×60L×4F

8

20

8

R1.5

60

10×25×10D×R0.5×75L×4F

10

25

10

R0.5

75

10×25×10D×R1.0×75L×4F

10

25

10

R1.0

75

10×25×10D×R1.5×75L×4F

10

25

10

R1.5

75

10×25×10D×R2.0×75L×4F

10

25

10

R2.0

75

12×30×13D×R0.5×75L×4F

12

30

12

R0.5

75

12×30×13D×R1.0×75L×4F

12

30

12

R1.0

75

12×30×13D×R1.5×75L×4F

12

30

12

R1.5

75

12×30×13D×R2.0×75L×4F

12

30

12

R2.0

75





Competitive Advantage:



Good Quality,Competitive price.Help the agent to get the more large market
